Description

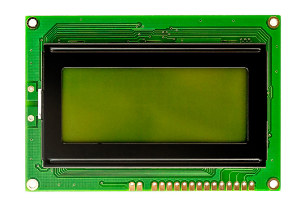

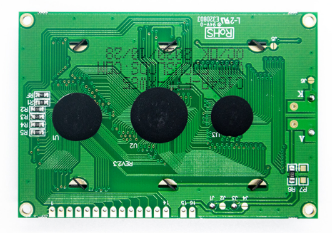

This display is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface, single led backlight with yellow green color included can be dimmed easily with a resistor or PWM, stn-lcd positive, dark blue text on the yellow green color, wide operating temperature range, rohs compliant, built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It’s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

It’s easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.

Specifications

• Display Format: 16×4 Character
• Interface: 6800 4-bit Parallel , 6800 8-bit Parallel
• IC or Equivalent: AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
• Appearance: Black on Yellow Green
• Connection: Pin Header
• Outline Dimension: 87.0(W)x60.0(H)x12.9(T)mm
• Visual Area: 62.00×27.20mm
• Active Area: 56.21×20.81mm
• Dot (Pixel) Size: 0.56×0.56mm
• Dot (Pixel) Pitch: 0.60×0.60mm
• IC Package: COB
• Display Type: STN-LCD Yellow Green
• Viewing Direction: 6:00
• Backlight Color: Yellow Color
• Backlight Current (Typ): 45mA
• Power Supply(Typ): 3.3V, 5V
• Supply Current for LCM(Max): 1500uA
• Operating Temperature: -20℃~70℃
• Storage Temperature: -30℃~80℃
