Specifications

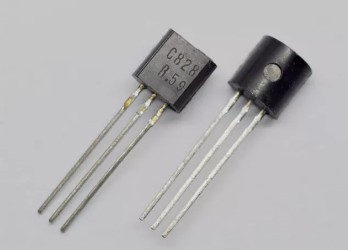

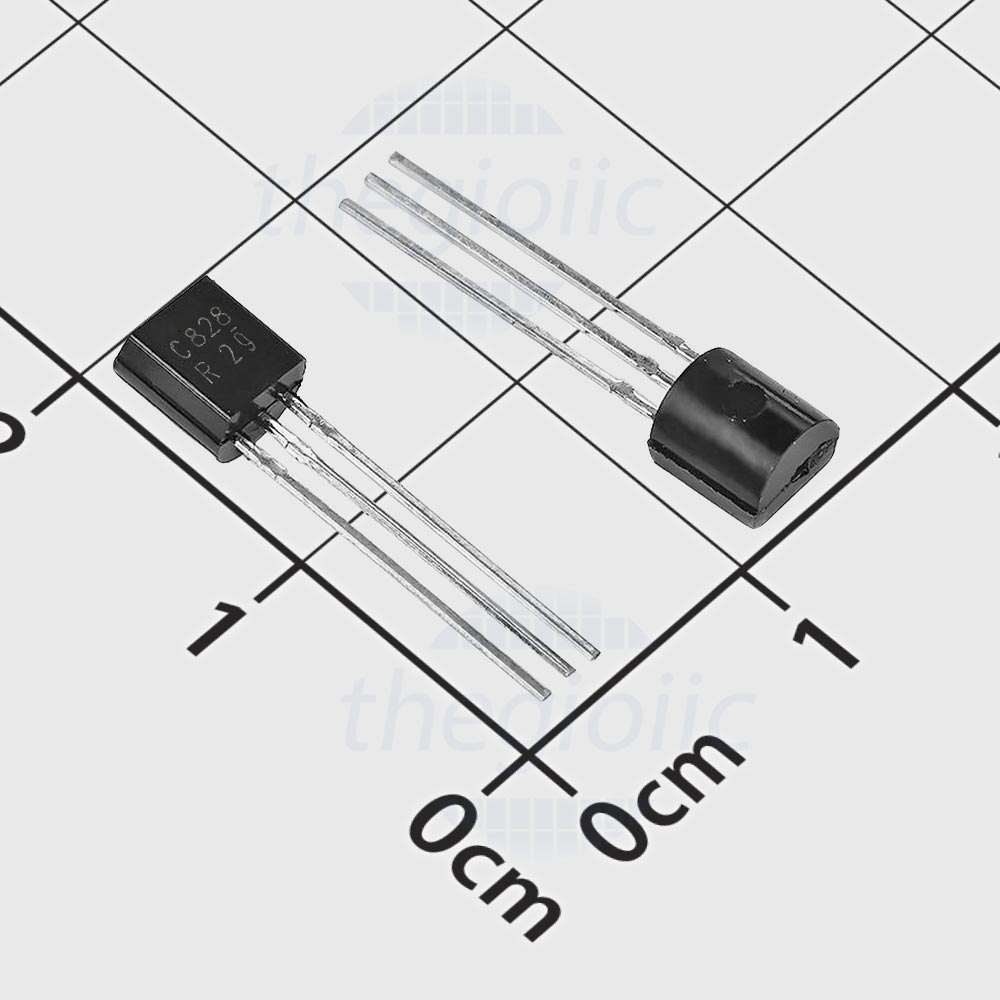

C828 Transistor
Type Designator: 2SC828
The material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 110 MHz
Forward Current Transfer Ratio (hFE), MIN: 65
