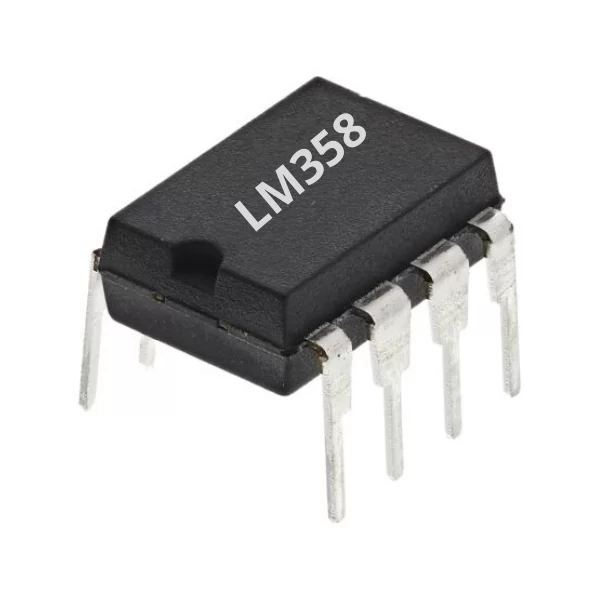

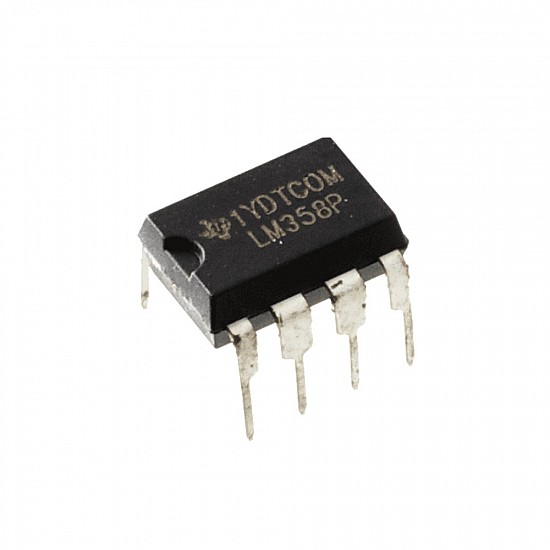

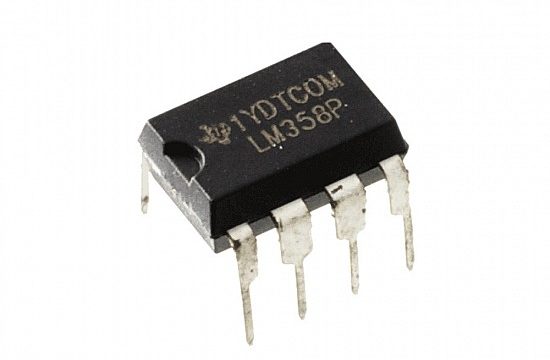

Name: LM358P Operational Amplifier - 8Pin
SKU: 11399
Availability: InStock

LM358P Operational Amplifier – 8Pin

5 in stock

Compare

Manufacturer:	Texas Instruments
Product Category:	Operational Amplifiers – Op Amps
RoHS:	Details
Number of Channels:	2 Channel
GBP – Gain Bandwidth Product:	700 kHz
SR – Slew Rate:	300 mV/us
Vos – Input Offset Voltage:	7 mV
Ib – Input Bias Current:	250 nA
Supply Voltage – Max:	32 V
Supply Voltage – Min:	3 V
Operating Supply Current:	350 uA
Output Current per Channel:	20 mA
CMRR – Common Mode Rejection Ratio:	80 dB
en – Input Voltage Noise Density:	40 nV/sqrt Hz
Package / Case:	PDIP-8
Mounting Style:	Through Hole
Shutdown:	No Shutdown
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Series:	LM358
Packaging:	Tube
Amplifier Type:	High Gain Amplifier
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 3 V, +/- 5 V, +/- 9 V
Features:	Standard Amps
Height:	4.57 mm
Input Type:	Rail-to-Rail
Length:	9.81 mm
Maximum Dual Supply Voltage:	+/- 16 V
Minimum Dual Supply Voltage:	+/- 1.5 V
Operating Supply Voltage:	3 V to 32 V, +/- 1.5 V to +/- 16 V
Product:	Operational Amplifiers
Product Type:	Op Amps – Operational Amplifiers
Subcategory:	Amplifier ICs
Supply Type:	Single, Dual
Technology:	Bipolar
Vcm – Common Mode Voltage:	Negative Rail to Positive Rail – 1.5 V
Voltage Gain dB:	100 dB
Width:	6.35 mm
Unit Weight:	0.015873 oz

Data sheet link : https://www.ti.com/lit/gpn/lm358
